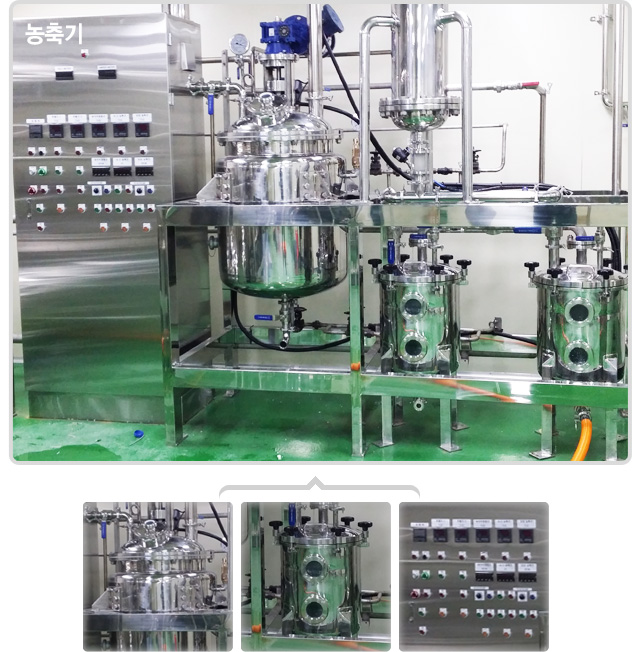

| Evaporator |
| 구분 |
규격 |
| Material |
STS304 |
| Capacity |
500L |
| Design Press |
Inner - 1.2Mpa, Jacket - 1.5Mpa |
| Design Temp |
Inner - 123℃, Jacket - 130℃ |
| Tank Body Size |
Ø800x1000h |
| Tank Top Head |
Ø800 10% Head |
| Tank Bottom Head |
Ø800 10% Head |
| Jacket Body |
Ø900 |
| Jacket Bottom Head |
Ø900 10% Head |
| Outer Body |
Ø1000 |
| Outer Bottom Head |
Ø1000 10% Head |
| Nozzles |
Steam Water In/Out : 25A, 15A
Material In/Out : 32A
CIP Ball , R/O, Service : IDF 1.5S Vacuum Gauge : -1.0 bar |
| Sight Glass |
Ø100 Tempered Glass |
| Light Glass |
Ø100 Tempered Glass |
| Light |
LED Lamp |
| Press Vent |
3kgf/cm²- Open |
| Vent Valve |
STS304 Manual Ball Valve |
| Manhole |
Ø450 Hinge Type |
| Insulation |
Cerakwool 140mm(t) |
| Surface Treatment |
Tank Inside - #300, Outside - #220 |
| Agitator Unit |
| 구분 |
규격 |
| Temp Control |
TIC |
| Agitator Motor |
AC220/380v 60Hz 3phase 1.5HP |
| Motor Base Plate |
STS304 |
| Agitator Shaft |
STS304 |
| Agitator Impeller |
STS304, Scraper, Paddle |
| Motor Cover |
STS304 |
|
|
|
|
|
|
)
)
)
)
)
)
)
