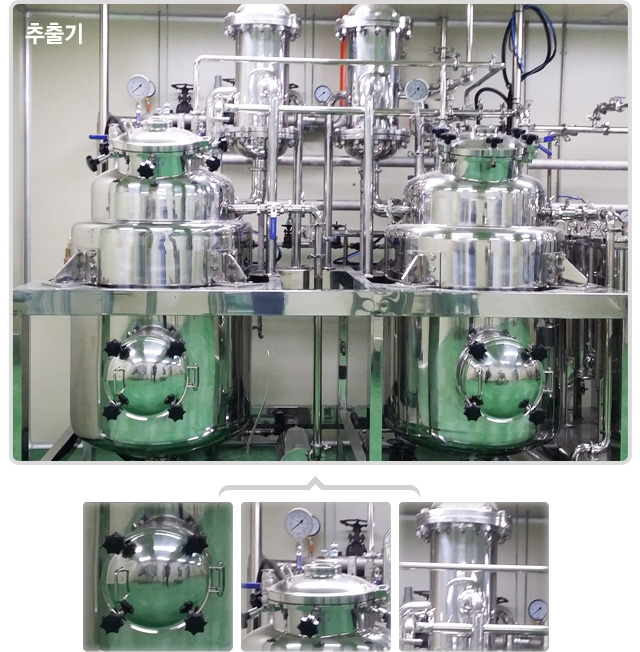

 HOME > 재품소개 > 추출기 |
 |
|
  |
| Tank |
| 구분 |
규격 |
| Material |
STS304 |
| Capacity |
500L |
| Design Press |
Inner - 1.2Mpa, Jacket - 1.5Mpa |
| Design Temp |
Inner - 123℃, Jacket - 130℃ |
| Tank Body Size |
Ø800x1000h |
| Tank Top Head |
Ø800 10% Head |
| Tank Bottom Head |
Ø800 10% Head |
| Jacket Body |
Ø750 |
| Jacket Bottom Head |
Ø750 10% Head |
| Outer Body |
Ø850 |
| Outer Bottom Head |
Ø900 10% Head |
| Nozzles |
Water In/Out : IDF 1.5S
Steam In/Out e: 25A - Flange
Vapo, Reflux, CIP Ball , R/O, Service Nozzle : IDF 1.5S |
| Sight Glass |
Ø100 Tempered Glass |
| Light Glass |
Ø100 Tempered Glass |
| Light |
LED Lamp |
| Press Vent |
3kgf/cm²- Open |
| Vent Valve |
STS304 Manual Ball Valve |
| Manhole |
Top Head Open(Lifting) Type |
| Insulation |
Cerakwool 40mm(t) |
| Surface Treatment |
Tank Inside - #300, Outside - #220 |
| Lifting Unit |
| Tank Top Head I-Nuts ; M10 x 6ea |
| Tank Top Head Hinge-Bolts : M10 x 6ea |
| Tank Top Head Hinge Set(Open/Close Hinge) |
| Air Cylinder Type |
| Air Cylinder Type |
| Regulator |
| Open/Close Sensor |
| Cylinder Speed Controller |
|
|
|
|
|
|
)
)
)
)
)
)
)
